Response Objects

Note

This documentation contains a lot more technical terms and assumes some level of engine knowledge. If you would like a step by step approach to understanding the examples, you should navigate to the Scripting Examples page.

Overview

Response Objects are the backbone of any logic within this system. At it’s core it’s a modified instanced UObject. This allows us neat features, like the ability to construct them in place in the details panel, but also to have functionality we can expose and use in Blueprints. By default, these objects don’t do much, however special measures have been implemented that allow these objects to have knowledge of the level they’re in, and even have the capability to tick, allowing blueprint extendable, potentially persistent frame based behaviours.

A good example of this is the classic Tween response, which makes use of the persistent ticking to be able to infinitely oscillate between 2 points. By controlling the enabling and disabling of tick, as well as each object being responsible for the execution of the next, it allows us to control when responses happen and in what order. This comes at a slight disadvantage however, allowing only one chain of responses to be in flight at the same time. Further explorations may implement a queueing system, but as of now it is not feasible.

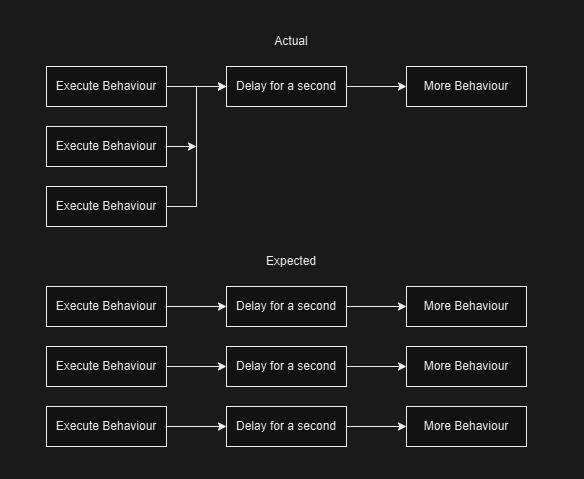

Consider this: You have a custom Blueprint response currently in flight, yet it makes use of a delay node before succeeding. In Blueprints repeated calls to this node are ignored, not queued up, meaning if within that delay you set off two more response chains you would end up with this response executing once perfectly, and 2 half complete responses. This could be disastrous for other responses, or the game in general, with no good way to undo the damage. As such, an execution chain must complete fully before a new one can start. Not a problem under normal circumstances, but causes issues for such cases.

Blueprint API

The basis of all Blueprint exposed behaviour is contained within two overridable functions:

• Receive Execute is a function that is called as soon as an response is called from it’s owning component. Success should nearly always be called at the end of it, except in some specific ticking circumstances such as waiting for a tween. It contains two parameters:
  • Instigator is the Actor that initially started this response via the broadcast. If an actor called TestTrigger1 broadcasts an event and TestResponse1 receives it, then TestTrigger1 is the instigator. This can be null, and it’s validity should be ensured before using it.
  • Dispatcher is the Actor that owns the Response Component executing this response. In the above example, TestResponse1 would be the Dispatcher as it owns the PTEventComponent. This should never be null and can be used safely.
• Tick is a function that executes every frame, provided EnableTick has been called somewhere in Receive Execute. EnableTick takes a single parameter, which controls if this object should persist it’s ticking after success. In most tweening cases this would be no, but for something like a constant spawner, it would be yes. Tick only has a single parameter, the delta time from the last frame executed. If you need access to the Instigator or Dispatcher here, consider caching them somewhere in Receive Execute.

Responses

Note

Responses that specifically activate something on another component can be tempermental at times. This is due to Unreal’s method of getting component references through FComponentReference. If such a response isn’t working, make sure the engine hasn’t reset the component reference.

Warning

Similarly to the above, the component reference is not good at referring to itself. If you want to alter something such as a material, it is ideal to do so with a secondary actor that contains the response component. Failure to do so may result in the response not working.

Activate Component Response

This response will activate any component passed into it, on any blueprint. For this to work properly, unless using it’s toggle behaviour, the component must set Auto Activate to false. For activating visuals on components, refer to the Change Visibility Response instead.

Parameters:

• Component To Activate - The component on another actor that should be activated
• Activation Type - Can be either to Activate, Deactivate, or FlipFlop between the two states
• Force Reset - Should the component reset on activation, behaving as if it has just started play again

Change Material Response

This response can change a material on a static mesh belonging to a static mesh component. It will not allow for assigning dynamic materials.

Parameters:

• Static Mesh Component - The component containing the static mesh you wish to change
• Material - The material you wish to change to
• Material Index - If the mesh has multiple material slots, which one do you wish to change. In most cases this would be slot 0

Create Widget Response

This response creates a widget and adds it to the viewport of the local player. Configurable to automatically destroy the widget after a certain time period.

Parameters:

• Widget Class To Spawn - The widget class that should appear on screen
• Auto Destroy - Should this widget destroy itself automatically
• Auto Destroy Delay - The time this widget should destroy itself after

Delay Response

This response delays for the specified time before continuing on to the next one. Useful to setup gaps in logic.

Parameters:

• Delay Amount - The amount of time to wait before continuing

Destroy Actor Response

This response can either destroy a single actor, or multiple actors. It contains functionality to delay between subsequent actor destructions, as well as delaying before the first one.

Parameters:

• Actor Destruction Method - Can be a single actor, or multiple
• Actor To Delete - Only present if destroying a single actor. Is the actor you want to remove
• Actors To Delete - Only present if destroying multiple actors. Are the actors you want removing
• Delay Between Actor Destruction - Only present if destroying multiple actors. The amount of time to wait between actors
• Delay Before First Destruction - Only present if destroying multiple actors. Whether to apply the delay before the first actor.

Play Sound Response

Allows the user to play a fire and forget sound at it’s constant volume, or whether to play it at a location with attenuation.

Parameters:

• Sound - The sound wave to play
• Audio Spawn Rules - Can be either Global, At Location, On Specific Actor or On Responding Component
• Actor To Spawn On - Only present if spawning on a specific actor, defines the actor to spawn at
• Location - Only present if spawning at a specific location, defines the exact world location to spawn at
• Rotation - Only present if spawning at a specific location, defines the exact rotation to spawn the sound at
• Volume Multiplier - How much to affect the default volume by. Defaults to it’s standard volume
• Pitch Multiplier - How much to affect the pitch by. Defaults to it’s standard pitch
• Start Time - How far through the sound it should play at. Defaults to the start
• Attenuation Settings - The attenuation settings to use for this sound. Defaults to None
• Concurrency Settings - The concurrency settings to use for the sound. Defaults to None
• Is UI Sound - Should this sound be treated as a sound in UI

Spawn Actor Response

Spawns a specified actor class at a specified position. If you just wish to spawn a static mesh, use the Spawn Static Mesh Response instead.

Parameters:

• Actor Class To Spawn - The class to spawn
• Actor Spawn Rule - Can be spawned at an Exact Location, Spawn On Responding Component or Spawn On Actor
• Spawn Transform - Only present if using Exact Location, gives an exact world transform to spawn at
• Actor To Spawn On - Only Present if using Spawn On Actor, allows setting of the actor to spawn on
• Spawn Offset - Only present if not using Exact Location, allows setting an offset to apply to the actor’s location

Spawn Static Mesh Response

A duplicate of the Spawn Actor Response. This allows spawning of a specific Static Mesh Actor.

Parameters:

• Static Mesh To Spawn - The mesh to spawn
• Actor Spawn Rule - Can be spawned at an Exact Location, Spawn On Responding Component or Spawn On Actor
• Spawn Transform - Only present if using Exact Location, gives an exact world transform to spawn at
• Actor To Spawn On - Only present if using Spawn On Actor, allows setting of the actor to spawn on
• Spawn Offset - Only present if not using Exact Location, allows setting an offset to apply to the actor’s location

Spawn VFX Response

Allows spawning of a Niagara VFX System at a certain location.

Parameters:

• VFX Spawn Rules - Sets how this should spawn, either At Location or Attached to another actor.
• Niagara System - The Niagara system to spawn
• Attach To Component - Only present if using Attached, sets the component this should attach to
• Attach Point Name - Only present if using Attached, sets the name of the socket to attach to. Can be empty
• Location Type - Only present if using Attached, sets the attachment behaviour
• Location - The world location to spawn this system at. Can change based on the Location Type
• Rotation - The rotation this system should spawn at
• Scale - Only present if using At Location, sets the scale this system should spawn at
• Auto Destroy - Whether this system should auto destroy when complete
• Pooling Method - How the engine should pool the Niagara Systems
• Auto Activate - Whether to automatically activate the system. Should probably be left true
• Pre Cull Check - Whether this system should be pre-culled

Toggle Component Visibility Response

Works similarly to the Activate Component Response. If a component is invisible, it will become visible, and vice versa. Only useable with Scene Components.

Parameters:

• Component To Activate - The Scene Component to activate

Trigger Event Response

Takes a gameplay tag and broadcasts it through the Event Subsystem. Allows chains of responses to fire easily.

Parameters:

• Gameplay Tag - The tag to broadcast

Tween Object Response

Allows an actor to “tween” (move between) two points. Can affect location, rotation or scale. Will either report success on reaching destination if going one way, or instantly if infinitely oscillating.

Parameters:

• Tween Target - Can either be Self, or Other Actor
• Actor To Tween - Only present if using Other Actor, specifies the object that should be tweened
• Tween Type - Can either be Location, Rotation or Scale
• End Position Settings - Only present if using Location, controls how to interpret the end location, can either be Exact Location for a world position, an Offset to it’s own position, or at the position of an Other Actor
• End Position - Only present if tweening Location, and not using the position of Other Actor. Can either be exact world co-ordinates or an offset
• End Actor - Only present if tweening Location and using the position of Other Actor. Sets the actor to move to
• End Rotation - Only present if tweening Rotation, specifies an absolute rotation to tween towards
• End Scale - Only present if tweening Scale, specifies an absolute scale to tween towards
• Oscillate - Whether to stop at the end, or move constantly between both points
• Ease In Out - Whether the tween should be constant, or speed up and slow down at the start and ends respectively
• Interpolation Speed - The speed at which you can move between points
